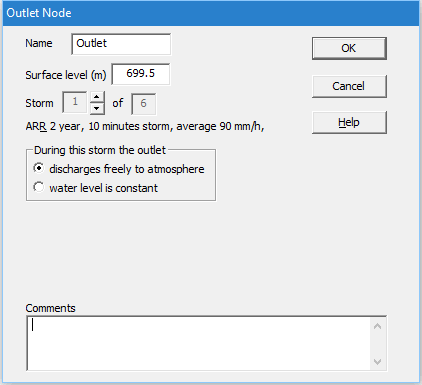

Outlet Node property sheet

Here you can enter a node as a terminal point or outlet to a drainage system.

​

The node can be an outlet to the pipe system, or a receiving point for overflows that are directed outside the system. In both cases the window will provide a text box for a surface level.

The program gives you a choice of having the outlet discharge freely to the atmosphere, or having a constant water level. If you select the latter in the During this storm the outlet box, a new text box will appear in which you can enter a water level at the outlet. This is the way that DRAINS defines tailwater levels, and it allows you to set different levels for different rainfalls. Thus the level for a 100 year ARI storm used in Analysis should be higher than for a 2 year ARI storm used for Design.

If you are running an Horton (ILSAX) hydrological model with multiple rainfall patterns the box will display the rainfall patterns in a spin box and require you to define a tailwater level for each. You can proceed through the storms by pressing the arrows in the spin box.
