Grassed areas

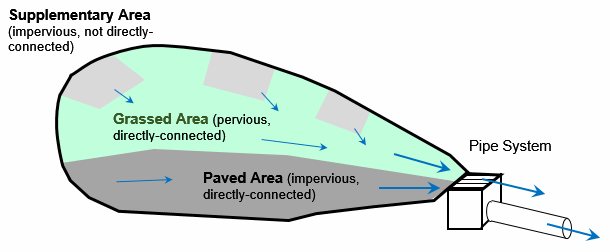

This is the name given in the Horton (ILSAX) hydrological model within DRAINS to pervious areas, whether on not they are covered with grass. They might be lawns, bare soil, bushland, gardens, landscaped areas or even pervious pavements. The Horton (ILSAX) infiltration model is used to calculate hydrological losses on such areas.

​

 Note that the lag time in the Sub-Catchment property sheet can be used to define where the grassed area is located in a sub-catchment.
