Paved areas

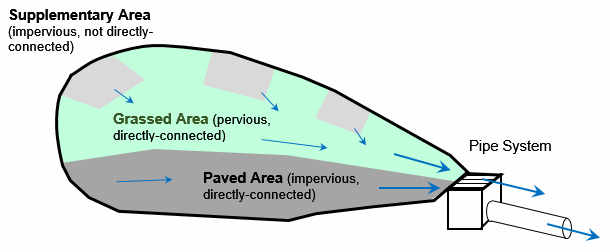

In general, this refers to land surfaces that are covered with impervious materials such as asphalt or concrete (although it may sometimes be applied to semi-pervious surfaces covered by paving blocks). In DRAINS it is the term given (for convenience) to impervious areas that are directly connected to the pipe system.

​
