Soffit (culvert or bridge)

This is the level of the top of the interior of a culvert, or the underside of the deck of a bridge.

• Related Articles

• Open Channel System with a Culvert and Bridge at Bowen- Queensland

  The file for this example Bowen Channel + Stream Example - Lite & Full Unsteady.drn, is located in the folder C:\ProgramData\Drains among the Lite examples. If this folder is hidden, in File Explorer select the View tab and tick the Show Hidden Items ...

• Culvert hydraulics

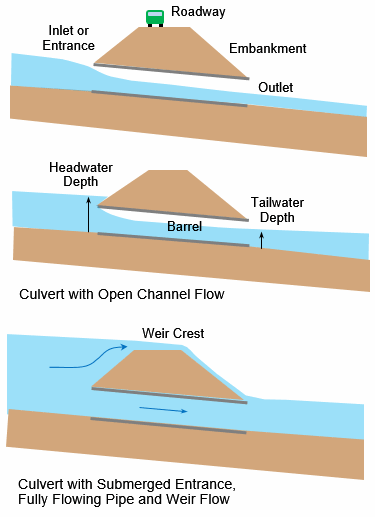

  While culverts are simple in concept, consisting of a pipe, an entrance and an outlet, their hydraulics can be quite complicated. Many combinations of flows can occur, depending on the headwater and tailwater levels, whether flows inside the culvert ...
