Rational method setup with 2016 I-F-D data
Although it is not sanctioned by ARR 2019, it is likely that some designers will want to continue working with the rational method, maintaining the methods set out in the 1987 edition of ARR. This can be done in DRAINS with 2016 intensity-frequency-duration data from the Bureau of Meteorology website, which provides 0.5 and 0.2 EY (39% and 18% AEP) rainfall depths and intensities, as well as the usual 50% and 20% AEP values.

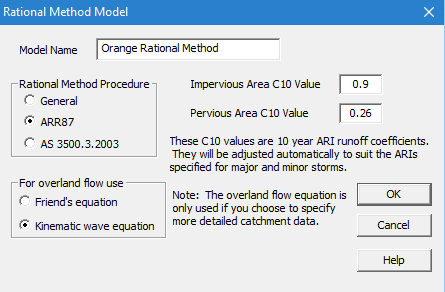

The setup process starts with the specification of an ARR 1987 rational method hydrological model in this property sheet, opened from the Project → Hydrological Models option. If you are converting an existing rational method model, this will be specified already.

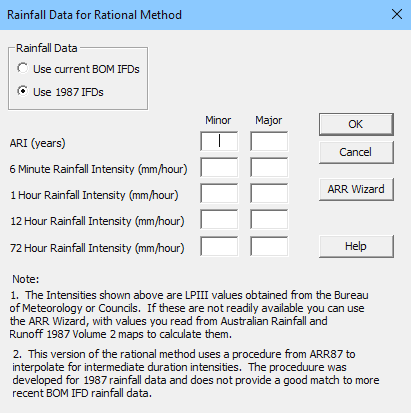

You can then go to the Project → Rainfall Data option property sheet. For a new model, the following window will appear:
This is used to enter ARR 1987 data. If you are converting an existing rational method model, the boxes will already be filled.

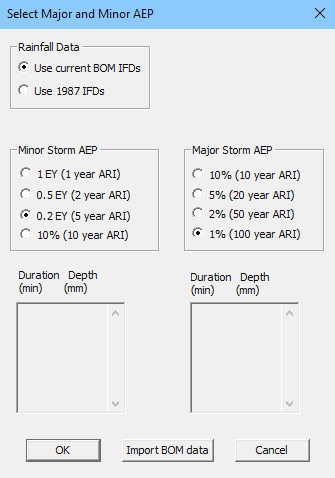

To input the 2016 I-F-D data, click on the Use current BOM IFDs in the Rainfall Data box. If you do this, and click on OK, this window will appear:

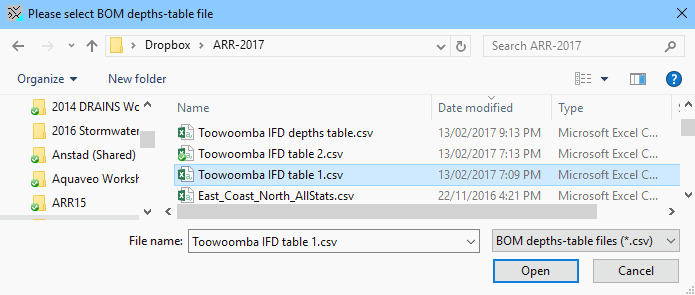

You can select the minor and major frequencies as exceedances per year (EY) or annual exceedance probabilities (AEPs). You will need to have gone to the BOM website and obtained I-F-D files as described here. Then click the Import BOM data button to display the window that imports an I-F-D file that you have previously saved.

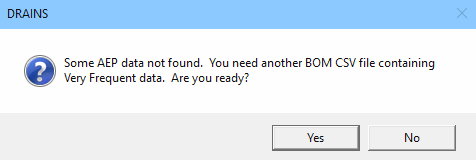

If you have specified a 0.5 or 0.2 EY minor storm, this message will appear.
If you reply 'Yes' you will be asked to input the second file containing very frequent I-F-D data. Once this is done, the following window will appear, and DRAINS will be able to run rational method calculations, after a drainage system is fully specified. The running process and the results presented are the same as with the ARR 1987 rainfalls.
A curve fit made to the I-F-D data from the BOM is used in rational method calculations.
