Main Window

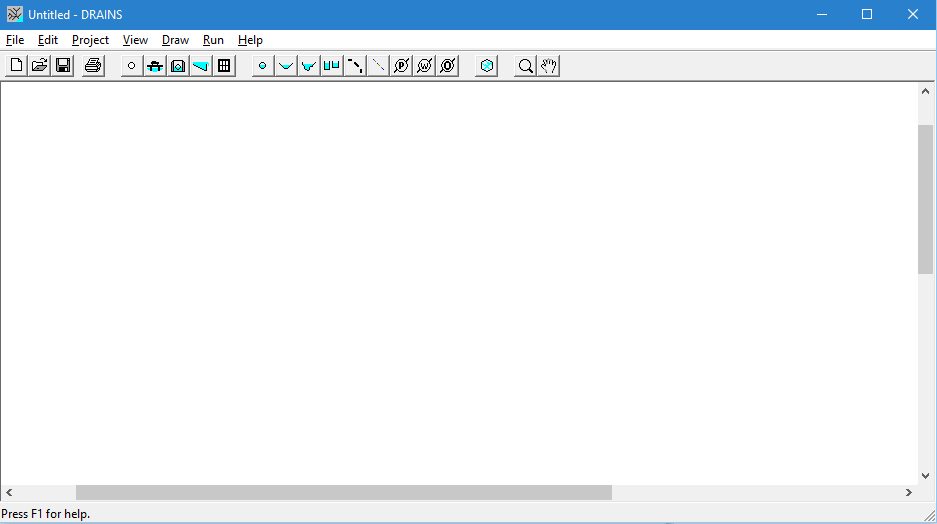

When DRAINS begins operation it displays its Main Window. This is the place where details of drainage systems are entered graphically, on an x-y coordinate base.
The background that appears in DRAINS models is a layer that is created from vector objects (lines, poly-lines and arcs and text) in a DXF drawing file. It can be switched on and off and the colour can be changed using options in the View menu.
Across the top of the window you will see the menu:
And below this a Toolbar. With your mouse you can select the operations that you want DRAINS to perform.
You can enter existing DRAINS data files here, or create your own drainage system using the drawing tools. An optional background can be added as a layer that is created from vector objects (lines, poly-lines and arcs and text) in a DXF drawing file. It can be switched on and off and the colour can be changed using options in the View menu.
In Help you will find information about DRAINS and instructions on how to run the program. You might start with the General Instructions for running DRAINS.
Information on menus and the toolbar is also available.
Related Articles
Results display in the Main Window
Following a run, peak flowrates and HGL levels are presented in the Main Window, with coloured numbers replacing the names of components. If multiple storms are used, the results for a particular storm can be selected using the pull-down menu in the ...Index sheet window
Here you will have a view of the total drawing space including the title blocks, which are fixed in the bottom right corner. A skeleton depiction of the drainage system will be shown, together with a rectangular 'mask' that can be moved around the ...DRAINS menus
These are the main means of operating DRAINS. They appear at the top of the Main Window. You can select from the following menus: The File menu The Edit menu The Project menu The View menu The Draw menu The Run menu The Help menu These menus are ...Description property sheet
This window provides space for various comments on a project in DRAINS. The first panel allows three title block lines to be entered. These appear, right-justified, in the bottom right corner of the drawing of the system in the Main Window. They can ...Customise Text dialog box
This window displays a number of choices for displaying data for five types of component on the Main Window drawing. Only one choice is possible for each type of component. The displayed information will be in a purple colour. You can use this ...
