Description property sheet

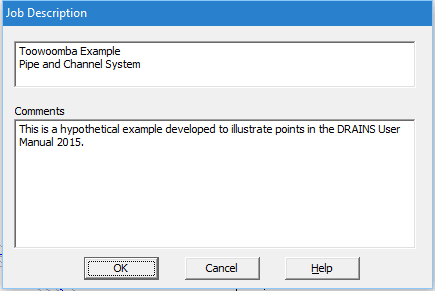

This window provides space for various comments on a project in DRAINS. The first panel allows three title block lines to be entered. These appear, right-justified, in the bottom right corner of the drawing of the system in the Main Window. They can be left blank.

​

These titles are reproduced when the drawing is printed using the Print Diagram option in the File menu.

The second space allows for any comments describing the system being analysed.
