Customise Text dialog box

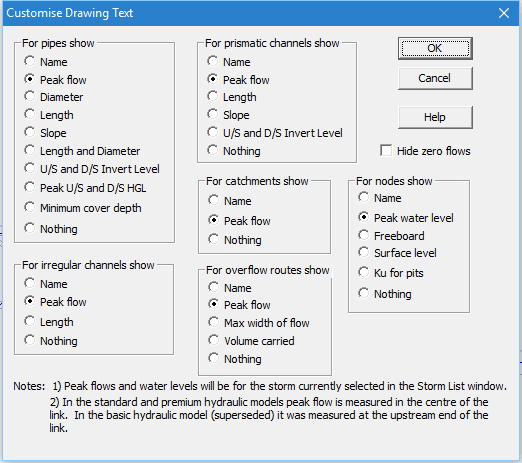

This window displays a number of choices for displaying data for five types of component on the Main Window drawing. Only one choice is possible for each type of component. The displayed information will be in a purple colour.
You can use this facility to display information of particular interest to you, such as pipe invert levels and calculated flowrates (Some information does not appear until after a Design or Analysis run is made).
Related Articles
Hydrological model dialog box
From this window you can select the hydrological rainfall-runoff model to be used. The current default model selected for Designand Analysis runs is shown in the list box to the left. Clicking the Delete Default Model button deletes the highlighted ...Crop Drawing Boundaries dialog box
This provides the opportunity of reducing the boundaries in one of four directions, which you can choose on the dialog box. For example, if you choose Left and Bottom this moves the drawing in this direction, reducing available space at the bottom ...Extend Drawing Boundaries dialog box
This provides the opportunity of moving the boundaries and providing extra space in one of four directions, which you can choose on the dialog box. For example, if you choose Right and Bottom this moves the drawing in the opposite direction, creating ...Default data base dialog box
This dialog box is used to set up a pit pipe and overflow route data base for a new DRAINS model. When selected from the Project menu, it allows you to choose a pit data base from those that are stored in the C:\Program Files\Drains\Program or the ...Printing to dialog box
This box, called from the Print Diagram option in the File menu, gives you the choice of printing the full diagram or only the part displayed in the current window. If the former option is selected, the diagram is reduced so that it fits onto the ...
